How do I connect the teleCalm adapter to an internet router using an ethernet cable?

 Quick instructions for setting up teleCalm with your router

How to Connect Your teleCalm Adapter to the Internet via Ethernet

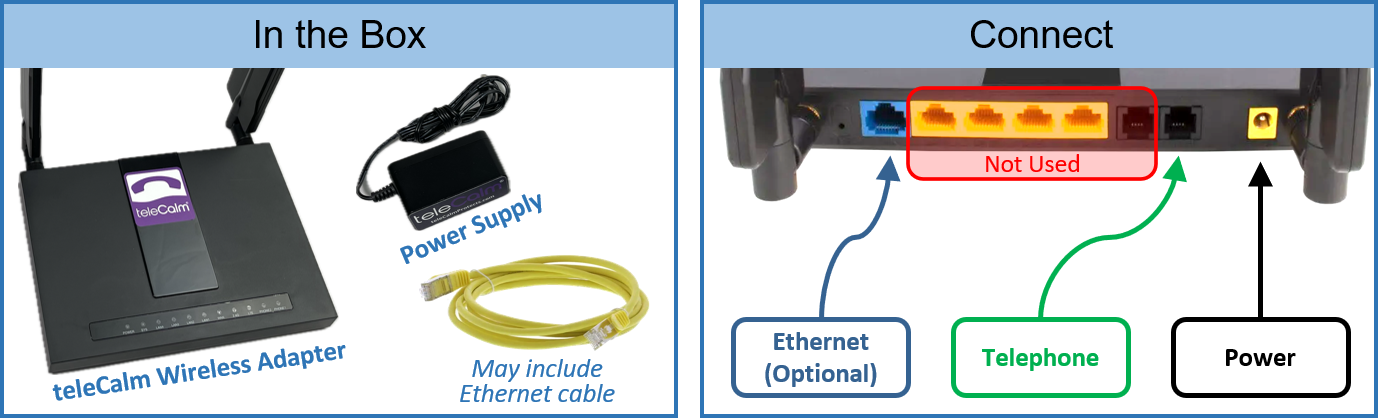

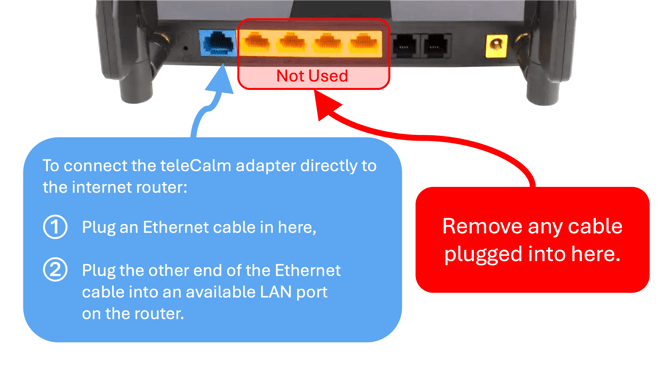

  1. Plug one end of an Ethernet cable into the blue port on the teleCalm adapter.

  2. Plug the other end into any yellow LAN port on your internet router.

  3. Make sure there are NO cables plugged into the yellow ports on the teleCalm adapter.

  4. Power on the adapter and wait about 5 minutes for the unit to boot up and connect.


EthernetConnection
